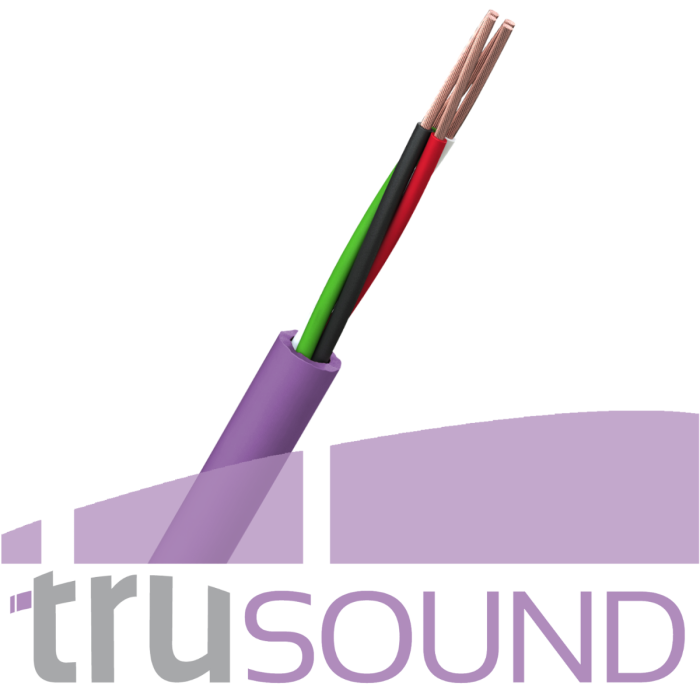

TruSound LSZH Professional Grade OFC 16/4 Speaker Cable
SRP:
£219.00
(£182.5 + VAT)
In stock
Only %1 left
SKU
TSS164H-E00
TruSound LSZH Professional Grade OFC 16/4 Speaker Cable
TruSound LSZH Professional Grade OFC 16/4 Speaker Cable
Developed from the American market these cables use 4 core 16AWG oxygen free copper conductors for optimum sound quality.
Clearly identified by their distinctive colour and printing, they are widely used in commercial and high-end residential installations.
16AWG Multicore LSHF speaker cables. Oxygen free copper conductors, features a quick strip jacket for easy installation.
TruSound Warranty:
TruSound speaker cable carries a full manufacturers warranty.
Construction
Conductor Material : 99.999% Oxygen Free Bare Copper
Number of Strands : 41/0.2mm
Insulation Material : Low Smoke Halogen Free (LSHF)
Sheath Material : Low Smoke Halogen Free (LSHF)
Sheath Colour : See Table
Core Identification : 2 Core – Red & Black
: 4 Core – Red, Black, Green &White
Electrical Characteristics
Nominal Conductor Resistance : < 13.7 Ω/km
Insulation Resistance : > 200 MΩ.M
Voltage Rating : 450/750V
Test Voltage : 2.5kV for 5 Minutes
Physical Characteristics
Overall Diameter : 6.1mm
Min. Bend Radius : 10 x OD
Temperature Rating : 0°C to +70°C
Standards
RoHS2 Complaint : Yes
CE Compliant : LVD (2014/35/EU), CPR (305/2011)
CPR Classification : ECA (EN50575:2014+A1:2016)
