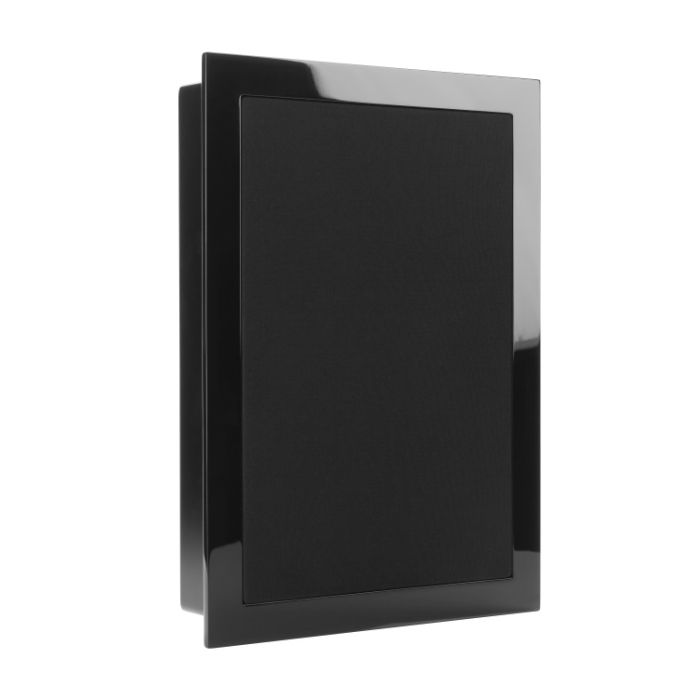

Monitor Audio SoundFrame 1 On-Wall/In-Wall Speaker
Please call or email to check stock levels before placing your order?
Please call or email your choices if specialist grilles are required.
See attached pdf's on the download tab for grille options.
Monitor Audio SoundFrame 1 On-Wall/In-Wall adopts the aspect of a typical portrait picture frame and is designed for music and film audio in a front left/right and surround configuration.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 1 On-Wall/In-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.
Having picked the perfect mix of SoundFrame speakers for your music or home theatre system, and decided whether Black or White frames or Frameless works best for you, your final step is choose the grilles. These could be the standard black or white grilles which come with your product, or you can pick something from our grille library. Blend with your décor, or provide an artful contrast – our range of designs will help you find the look you’re after.
Frameless:
All the grilles in our library can be supplied as our Frameless option, this means that the frame of your Soundframe is removed and replaced with a larger grille.
Ordering from the Grille Gallery:
Simply jot down the reference number for your chosen grille(s) and call or email us. Though some grilles are shown in pairs, they’re individually numbered, so you can order the combination of images or colours that’s right for you. State if you require Framed or Frameless when ordering.
Commissioning a Bespoke Grille:
If you have your own idea for a SoundFrame grille; a family photo, specific paint swatch, even a work of art, (provided you have the rights to use it) supply us with your print-ready image, which will then be printed onto your SoundFrame Grilles.
Technology:
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.
- Choice of high gloss white or black lacquer frames.
- SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RST cone for a super-fast life-like response.
- High frequency attenuation +- 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
Monitor Audio SoundFrame Warranty:
Monitor Audio SoundFrame 1 carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
Frequency Response:
55 Hz — 35 kHz
Sensitivity (1W@1M):
86 dB
Nominal Impedance:
8 ohms
Power Handling (RMS):
100 W
Maximum SPL:
106 dBA
Recommended Amplifier Requirements:
25 — 100 W
Bass Alignment:
Sealed Box
Crossover Frequency:
550 Hz & 3.3 kHz
System Configuration:
3-Way
Drive Unit Complement:
1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST II
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter
Dimensions (Including Frame (H x W x D)):
539 x 389 x 87.5 mm
(211/4 x 155/16 x 37/16")
Depth From Wall:
87.5 mm (37/16")
Weight:
7.44 kg (16.37 lbs)
