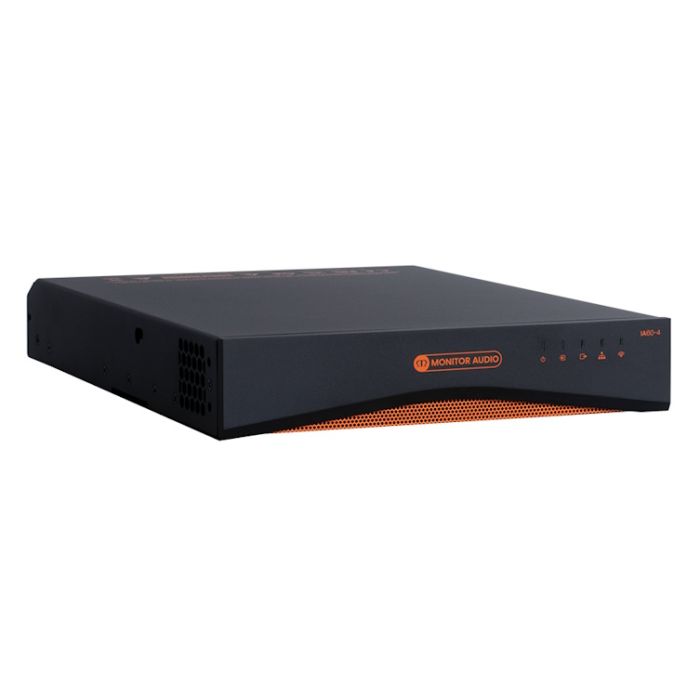

Monitor Audio IA60-4 Installation Amplifier
Monitor Audio IA60-4 is a highly compact, incredibly versatile four-channel custom installation amplifier, the IA60-4 can be configured to deliver four channels of 60 W or 2 channels at 125 W.
Monitor Audio Installation Amplifiers are built to perform at the highest levels while taking up the least rack space. The IA60-4 may be entry-level, but it features full DSP matrix configuration and offers flexible power options: it can be configured to deliver four channels of 60W or 2 channels at 125 W or using power sharing it can deliver a single channel of 250 W with no loss of performance. All this from a rugged, 1U half-size space-saving design. The IA60-4 is ideal for two zone stereo applications, height channels within home theatre Atmos solutions or small garden systems.
Key Features:
- 4 x 60 W/2 x 125 W
- Fully customisable DSP amplifier with web configurator
- Half width 1U rack format allows unique installation opportunities or high power density depending on how the product is mounted
- High performance Class D amplifiers ensure excellent power and sound delivery
- Power Sharing technology
- Supports 70/100V line level speakers
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
Channels: 4
Output Power @ 4 Ohms/8 Ohms
4 x 60W SE*
Output Power @ 70/100V
2 x 125W BTL**
Poweshare (up to)
1 x 250 W
Power Consumption
75 W
Thermal Output
256 BTU
Polarity (Default)
Non-inverting
Output Voltage
70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded)
Signal to Noise Ratio
>106dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
THD+N (typical)
<0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
Frequency Response
+0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)
Protection Circuits
Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
Power Supply
Switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating Voltage/Frequency
Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
Standby Consumption
<0.5 W
Accessories
Rack Mount Kit, Wall/desktop mount kit (sold seperatley)
Power Ratings
1% THD @ 120Vac and 230Vac
Cabinet Finish
Black Anodised
* SE - Single Ended
** BTL - Bridge Tied Load
Dimensions
44 x 220 x 325 mm (13/4 x 811/16 x 115/8")
