Monitor Audio IA150-8C Installation Amplifier
Out of stock
SKU
IA150-8C
Model Being Discontinued - New Model Due Soon
Please Call Or Email For More Information?

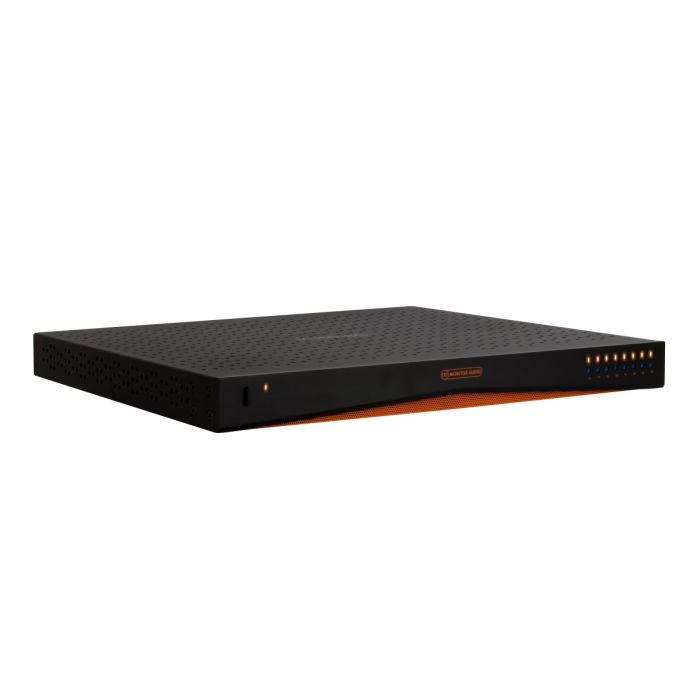

Monitor Audio IA150-8C Installation Amplifier. The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.
The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.
Works with –
Monitor Audio Warranty:
Monitor Audio Amplifiers carry a 5 Year Warranty
'Connect' IP Control
Yes
Channel Number
8 (4 Stereo Pairs)
Power (W / Channel) | 4 ohms
150 W
Power (W / Channel) | 8 ohms
140 W
Power (W / Channel) | Bridge (8 ohms)
300 W (4CH)
Power (W / Channel) | 70V
N/A
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 1140 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
1U
IP Communication
TCP/IP (RJ-45 10/100 Base T)
Mains Operating Voltage
100 –120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Rating
10 A (T10AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
<2 W
Dimensions (Without Feet (H x W x D))
42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16")
Dimensions (With Feet (H x W x D))
52.8 x 438 x 427 mm (21/16x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
Weight
7.45 kg (16 lb 6 oz)
