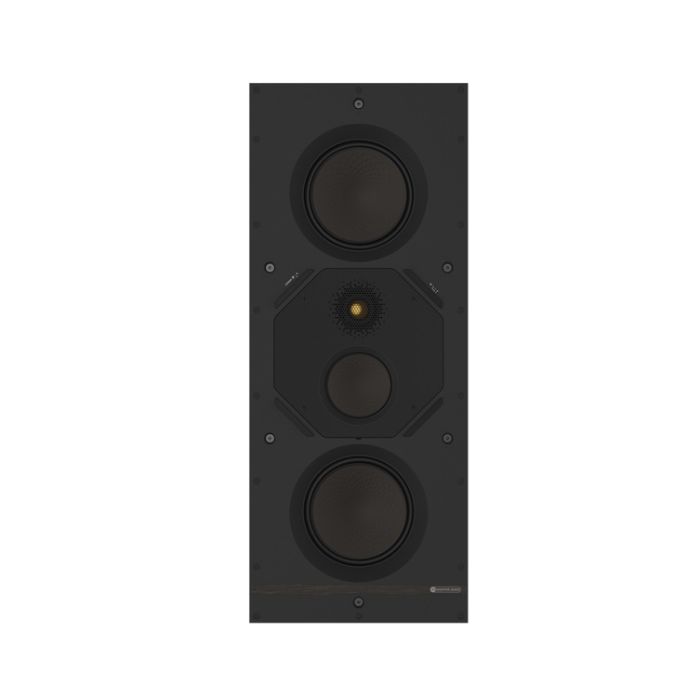

Monitor Audio Creator Series W2M In-Wall Speaker is a medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features:
- Ideal for installations where pristine acoustic performance is required
- Three-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 3" (76 mm) RST II mid-range driver
- 2 x 5" (127 mm) RST II bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Monitor Audio Warranty:
Monitor Audio In-Wall Speakers carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
40 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 1 kHz
(4.1 Ohm @ 15 kHz)
Sensitivity (2.83Vrms@1m, Installed)
87 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
120 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
45 – 180 W
Drive Unit Complement
2 x 5" (127 mm) RST II bass driver
1 x 3" (76 mm) RST II midrange driver
1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 650 kHz
MF/HF: 3 kHz
Pre-Construction Bracket
WM-B
Cabinet Finish
Matt black & Orange & Bronze
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/ +
Mounting Depth
85 mm (33/8")
Cutout L x W
527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille (H x W x D))
560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each)
3.9 kg (8 lb 9 oz)
