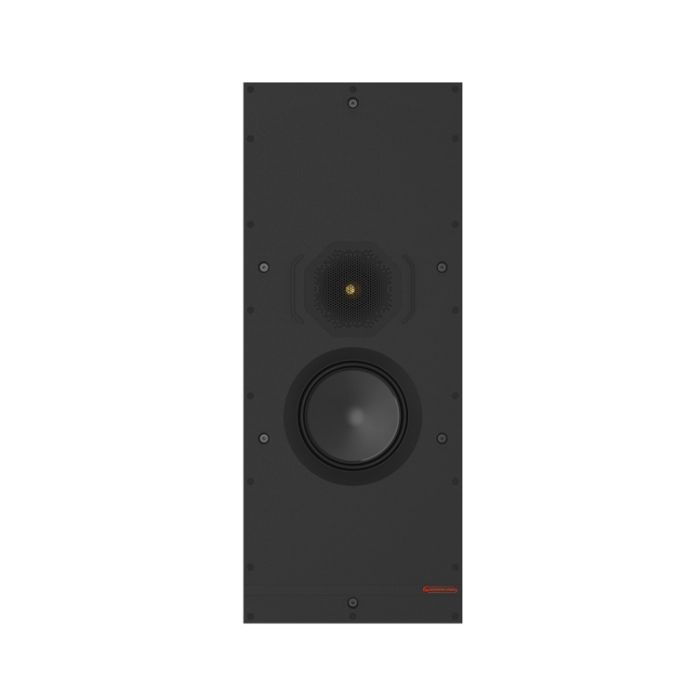

Monitor Audio Creator Series W1M-E is a medium-sized Tier 1 in-wall loudspeaker designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features:
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Monitor Audio Warranty:
Monitor Audio In-Wall Speakers carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
System Format
2–Way
Channels
1
Frequency Response, Installed (-6dB)
40 Hz – 30 kHz
Nominal Impedance
8 ohm
Minimum Impedance (20Hz to 20kHz)
6.5 Ohm @ 200 Hz
(6.2 Ohm @ 20 kHz)
Sensitivity (2.83Vrms@1m, Installed)
84 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
110 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
50 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
25 – 100 W
Drive Unit Complement
1 x 5" (127 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 2.5 kHz
Pre-Construction Bracket
WM-B
Cabinet Finish
Matt black & Orange
Sold As
Single Unit
Mounting Depth
85 mm (33/8")
Cutout L x W
527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille (H x W x D))
560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each)
2.6 kg (5 lb 11 oz)
