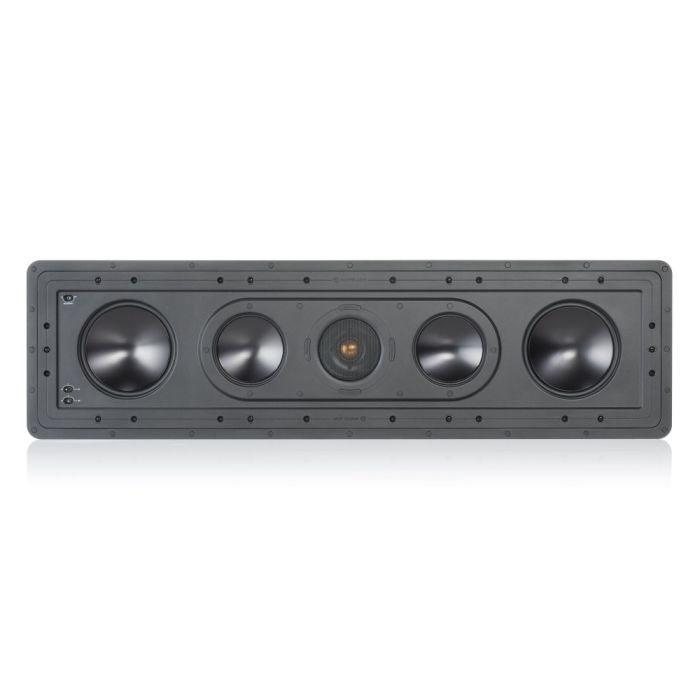

Monitor Audio CP-IW260X In-Wall Speaker
Special Order - Please allow 3 to 5 days for delivery
Monitor Audio CP-IW260X In-Wall luxury Speaker combines Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance. The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5” bass drivers and twin 4” mids astride a gold dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.
Key Features:
- Dual 4” C-CAM® mid-range drivers – featuring underhung voice coil
- 25mm (1”) C-CAM Gold Dome tweeter
- Portrait or landscape orientation
- Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
- Patented Tri-Grip® fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
- Paintable grille to blend with the living environment
- High quality bi-wire terminal connections – provide increase in performance particularly when a bi-amplifier configuration is specified.
Monitor Audio Warranty:
Monitor Audio Custom Installation Speaker Series carry a Lifetime Warranty
We are authorised Monitor Audio retailers. Brand new and complete with the full warranty.
Frequency Response
50 Hz - 30 kHz (-6 dB typical in room response)
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
89 dB
Maximum SPL
113.8 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
60 - 150 W
Crossover Frequency
L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave
Drive Unit Complement
2 x 6.5” C-CAM Bass drivers
2 x 4” C-CAM Mid-range drivers
1 x 25 mm (1”) C-CAM Gold Dome tweeter
Adjustment Controls
Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)
Fixing Type
10 x Tri-Grip Dog leg fixings
Construction Material
Cast Polymer enclosure (RoHS2 Compliant)
Weight
11.98 kg (26 lb 6 oz)
Pre-Construction Bracket
WB12 Pre-Construction Bracket (Green)
Overall Dimensions (H x W x D)
907 x 257 mm (353/4 x 101/8")
Overall Depth (Including Grille)
102 mm (4")
Cut-Out Dimensions
880 x 230 mm (3421/32 x 9")
Mounting Depth
96 mm (33/4")
