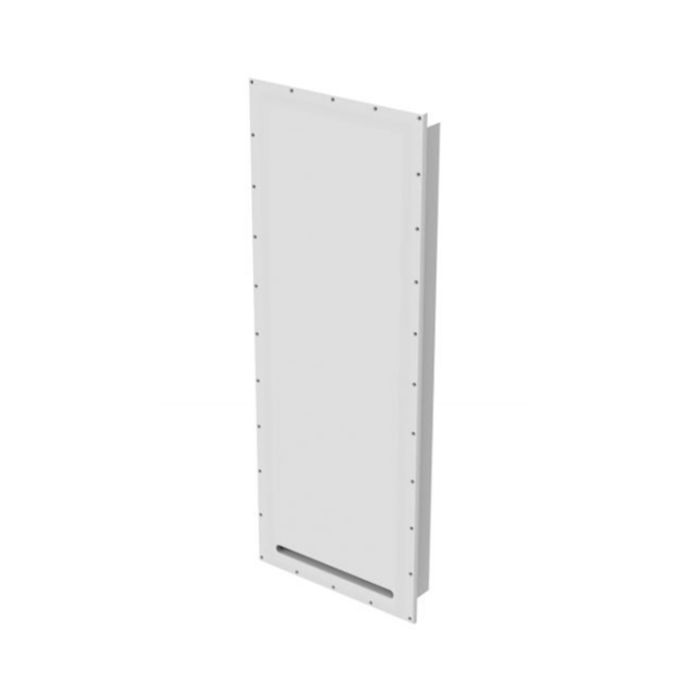

Amina ALF100SM High Performance Discreet Subwoofer
In stock
SKU
ALF100SM
ALF100SM blends seamlessly into any room by mounting between studs or joists in walls and ceilings with the subwoofers front flange fixing directly to the face of studs or joists on 400mm (16”) centres, effectively replacing a section of 12.5mm (1/2”) plasterboard /drywall while only requiring 89mm (3 1/2”) of cavity depth.
Tapered edges of the faceplate allow the subwoofer to be plastered up-to and feathered in or fully plastered over before decorating as normal. The subwoofer vents into the room via a discrete slot which is often located above, or inset in baseboards or disguised in HVAC vents. The port vent should never be obstructed as this will affect performance. For full installation details, please refer to the installation guide.
Nominal impedance 4 Ohms
Power handling 200W continuous
Sensitivity 90dB @ 1m/2.83Vrms (half space)
Frequency response 30Hz - 160Hz (- 6db)
Max SPL 110dB RMS @ 1m (half space)
Electrical connection Push button spring terminals Dimensions 99mm x 409mm x 1066mm (3 7/8” x 16 1/8” x 41 15/16”)
Product weight 20kg (44lb 2oz)
Port locations Front, 20mm (13/16”) from short edge.
Port dimensions 20mm (13/16”) x 307mm (12 1/16”) corners R10mm (3/8”)
Minimum cavity depth requirement 89mm (3 1/2”)
Manufacturer Limited Warranty 3 years
99mm x 409mm x 1066mm
(3 7/8” x 16 1/8” x 41 15/16”)
