Amina ALF100CV High Performance Discreet Subwoofer
In stock
SKU
ALF100CV

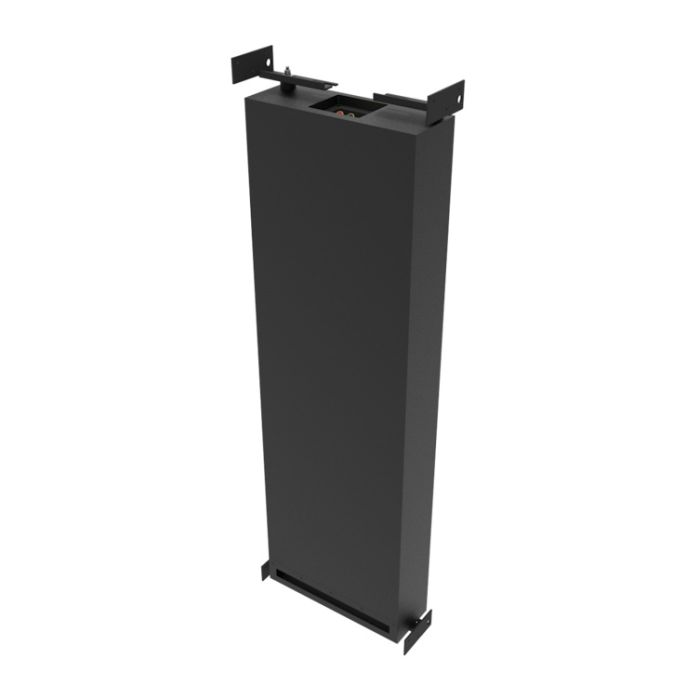

Amina ALF100CV, a hidden 4th order bandpass subwoofer designed to deliver exceptional low frequency power and precision. With an RMS power handling rating of 200W @ 4Ω and extending down to 28Hz, the Amina ALF100CV produces rich, deep bass suitable for the most demanding applications.
The ALF100CV features a fail-safe mounting system that mechanically isolates the subwoofer from the surrounding construction, minimizing the transfer of vibration into the structure of the building and maintaining pristine sound reproduction. The mounting system allows the subwoofer to be mounted between studs or joists on 400mm (15 3/4 ”) to 600mm (23 5/8 ”) centres making it ideally suited to installation in cavity ceilings and cavity walls where there is 115mm+ (4 1/2 ”) of cavity depth. Alternatively, the ALF100CV can be positioned in cabinetry, behind kitchen kickboards or under sofas.
Nominal Impedance 4 Ohms
Power Handling 200W Continuous
Sensitivity 89dB @ 1m/2.83Vrms (Half-Space)
Frequency Response 28Hz - 120Hz (- 6dB) Max SPL 109dB RMS @ 1m (Half-Space)
Electrical Connection Push Button Spring Terminals
Dimensions (Excluding Mounting Hardware) 109mm x 310mm x 1000mm (4 5/16 ” x 12 3/16 ” x 39 3/8 ”)
Installation Dimensions (Including Mounting Hardware) 115mm x [330mm -> 520mm] x 1100mm ( 4 1/2 ” x [13” -> 20 1/2 ”] x 43 5/16 ”) Product Weight (Including Mounting Hardware) 14.9kg (32lb 14oz)
Port Locations Configurable as Front-Firing or End-Firing
Port Dimensions 20mm (13/16 ”) x 274mm (10 13/16 ”)
Minimum Cavity Depth Requirement 115mm (4 1/2 ”)
Manufacturer Limited Warranty 3 Years
109mm x 310mm x 1000mm
(4 5/16 ” x 12 3/16 ” x 39 3/8 ”)
Product Weight: 14.9kg
